* Made by forming ABS panels laminated using a heat conduction method into various designs, or reinforced and processed to include glass in flat panel door products.
Superior durability
- Using PVC inner panel and LVL(Laminated Veneer Lumber) wood inner panel to minimize warping and deformation.
Moisture-resistant
- PVC deco sheets and ABS panels are laminated using a heat conduction method rather than adhesive, preventing peeling or rotting due to moisture.
Various colors and diverse designs
- With a variety of stock sheets and diverse designs, desired coordination is possible.
Order Considerations
- The edge film is basically attached on one side.
- - When ordering edge film with double-sided attachment, please specify separately on the order form.
- The maximum and minimum sizes that can be produced vary according to the product design.
- - Please be sure to check the possible sizes for production.
- In some cases, point doors cannot be manufactured for bathroom doors.
- Door handle drilling is not provided by default.
- - If you request drilling, please specify the exact measurements. (e.g., Center / Lower 900 / Upper 1000)
- The sizes indicated on the product may have slight deviations.

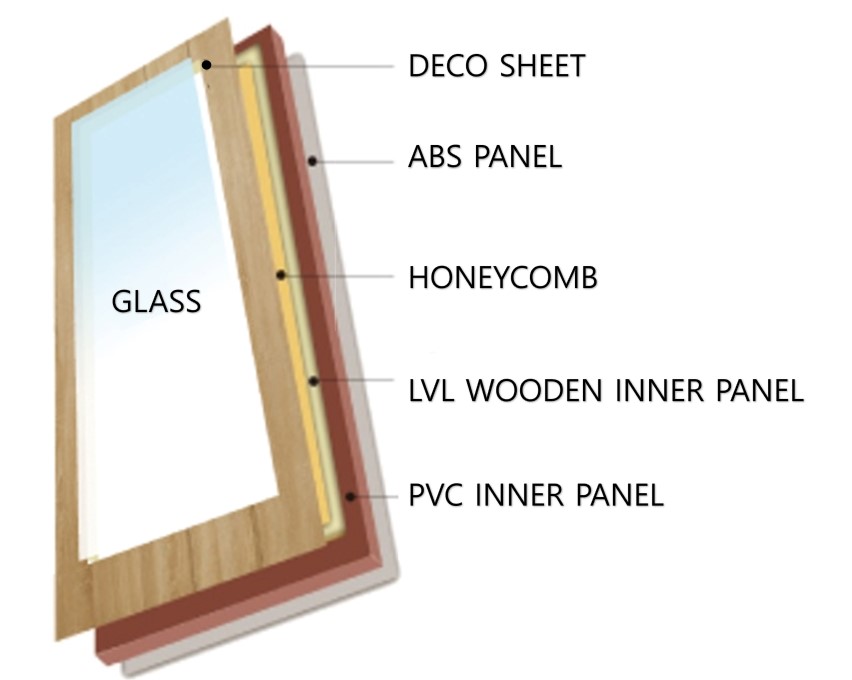

DECO SHEET
- Using various deco sheets that retain the natural wood texture.
ABS PANEL
- Synthetic resin panels applied to both surfaces of the ABS door.
HONEYCOMB
- Improved soundproofing and insulation through honeycomb filling.
LVL WOODEN INNER PANEL
- Core materials for preventing warping and twisting, ensuring more robust construction.
PVC INNER PANEL
- Edge finishing materials for doors, waterproof core material that is easy to cut on-site.
* Applicable glass types are single-pane glass (5T) and double-glazed glass (16T).

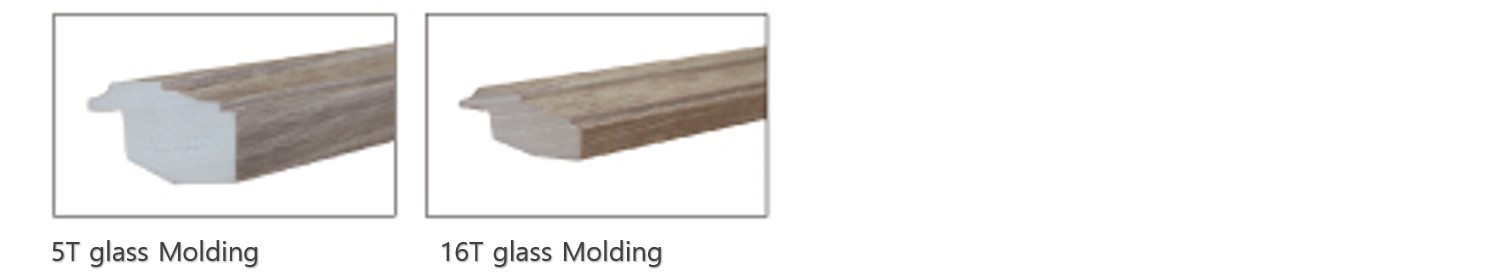

* Glass molding provided (5T or 16T).
* Indicating glass thickness is essential when ordering doors.
* For HG-410-1 products, installing 4 hinges is recommended when using double-glazed glass.
